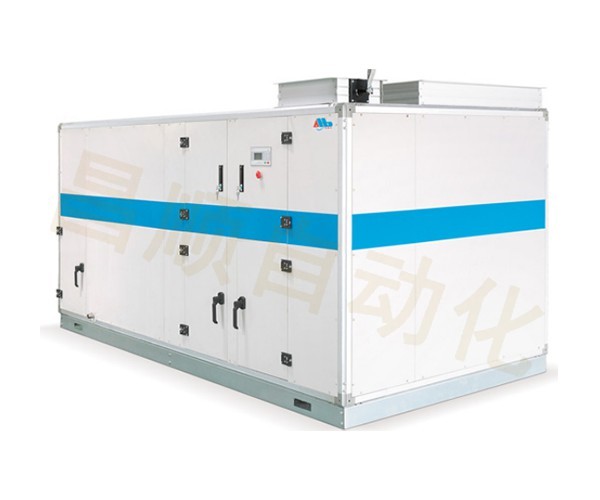

恒温恒湿机constant temperature and humidity machine

型号model:30HP

电源Power supply：380V 50hz

输入总功率Total input power：91KW

最大运行功率Maximum operating power：70KW

制冷量Refrigeration capacity：88kw

制热量Heating Capacity：40kw

循环风量：16000m3/h

机外静压external static pressure：850Pa

机组噪音Unit noise：72db

温控范围Temperature range：16—28℃±2.0℃

湿控范围Moisture control range：40-70%±5%

蒸发器evaporator：双向开槽型铝翅片/蜂窝状铝翅片Bidirectional slotted aluminum fins/honeycomb shaped aluminum fins

冷凝器condenser：壳管式Shell and tube type

水量amount of water：27m3/h

风机fan：进口超低噪音离心电热式皮带传动Imported ultra-low noise centrifugal and electric belt drive

加湿器humidifier：加湿量Humidification amount28kg/h，进水管径Inlet pipe diameterG1/2//

除湿dehumidification：压缩机制冷除湿Compressor refrigeration and dehumidification，除湿量Dehumidification capacity：42kg/h

压缩机compressor：全封闭涡旋式压缩机Fully enclosed scroll compressor

制冷剂refrigerant：种类typeR22，外平衡式热力膨胀阀节流方式External balance thermal expansion valve throttling method

主机外形尺寸Overall dimensions of the host：2300x1600x2450mm

主机重量Weight：750kg
